Filter Housing: 316L & 304L Stainless Steel Multi – Cartridge Filter Vessels for Liquid Filtration (40 Inches, Multi – element)

Filter Element Precision Filters: Efficient Filtration for Diverse Industrial Fields

1. Introduction to Filter Element Precision Filters

Filter element precision filter, also known as security filter, is an efficient filtering device widely used in industrial fields such as medicine, food, biopharmaceuticals, electronics, chemical engineering, environmental protection, water treatment, etc.

2. The Working Principle of Precision Filters

The precision filter uses a filter element as the filtering component. It allows the original liquid to pass through the filter material under pressure. The filter residue is left on the pipe wall, while the filtrate flows out through the filter element. This achieves the purpose of filtration.

3. Diverse Types of Filter Cartridges and Their Functions

There are various types of filter cartridges, including melt blown filter cartridges, polypropylene filter cartridges, wire wound filter cartridges, polyether sulfone filter cartridges, polyvinylidene fluoride filter cartridges, polytetrafluoroethylene filter cartridges, nylon filter cartridges, fiberglass filter cartridges, etc. Filter cartridges are made of different materials. These materials result in different filter apertures, enabling them to meet different filtration needs.

Filter Housing, Multi – Cartridge Filters, and Vessels: The Heart of Efficient Filtration Systems

1. The Indispensable Role of Filtration in Modern Life

In today’s industrial and residential landscapes, the role of filtration cannot be overstated. From ensuring the purity of drinking water to maintaining the integrity of manufacturing processes, efficient filtration systems are paramount.

2. Core Components of High – Efficiency Filtration Systems

At the core of these systems lie three crucial components: Filter Housing, Multi – Cartridge Filters, and Filter Vessels.

Filter Housing: Function – Oriented, Material – Durable and Industry – Versatile

1. Function – Oriented Design of Filter Housing

Manufacturers design filter housing to act as the protective casing, enclosing and supporting the filtration media. It serves as the backbone that holds the entire filtration system together. This design ensures that the media can effectively trap impurities while withstanding the pressures and flows of the process.

2. Durable Materials for Robust Filter Housings

Manufacturers deliberately choose durable materials like stainless steel or reinforced plastics to craft filter housings, endowing them with the capacity to withstand a wide range of environmental conditions, from extreme temperatures to corrosive chemicals.

3. Industry – Versatile Adaptability of Filter Housings

The versatility of filter housings stems from their ability to accommodate different types and sizes of filter cartridges. Whether you aim to remove particles, bacteria, or chemicals, you can configure the housing to hold the appropriate media. This adaptability makes filter housings indispensable across industries, including food and beverage processing, pharmaceutical manufacturing, and municipal water treatment plants.

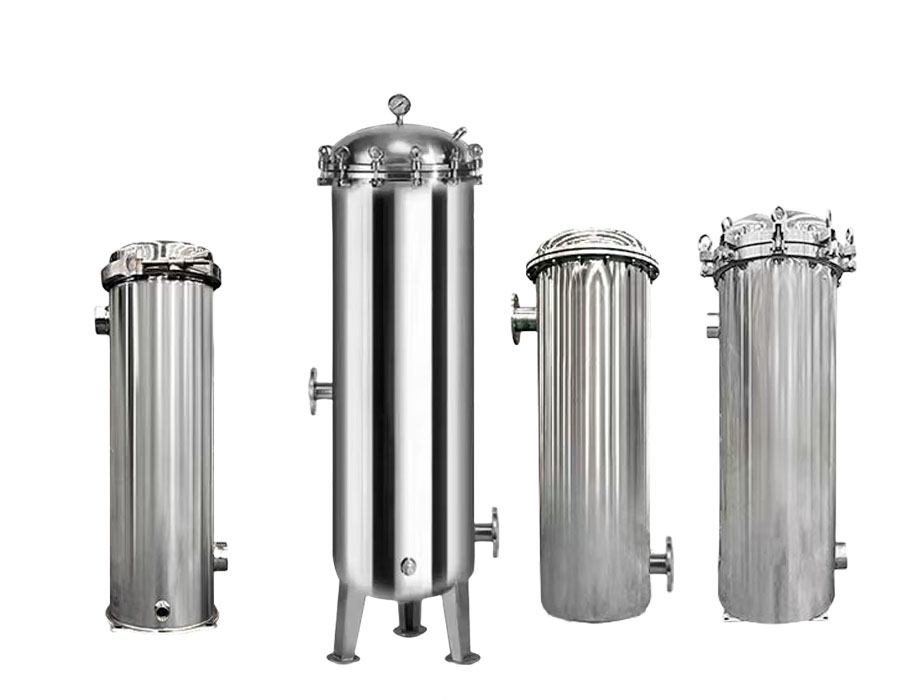

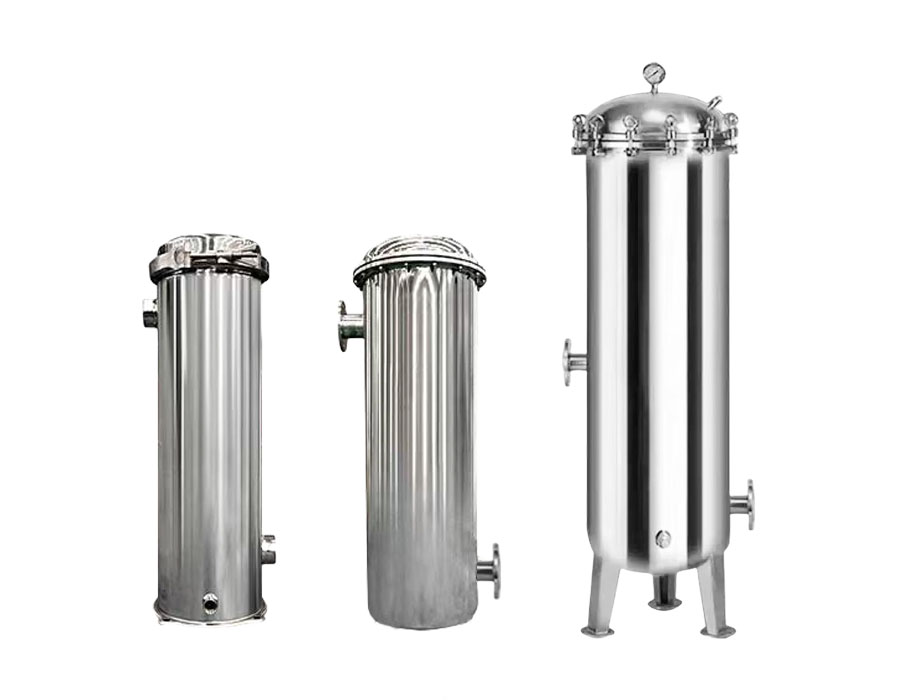

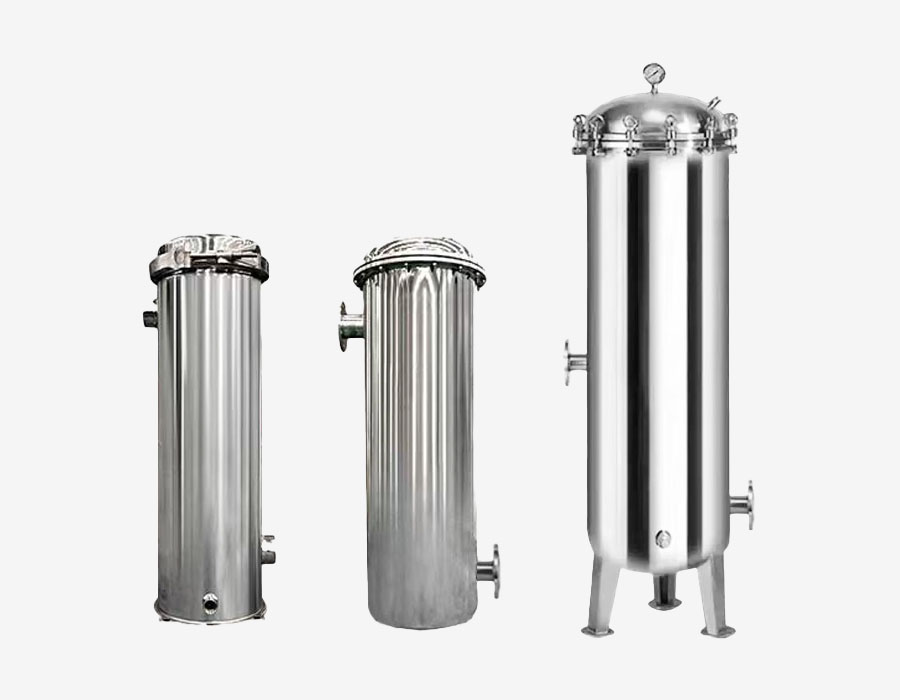

Filter housing Cartridge Filter Vessels

Cartridge Filter Vessels adopts a filter element, which, under the action of pressure, allows the original liquid to pass through the filter material, the filter residue to remain on the pipe wall, and the filtrate to flow out through the filter element, thus achieving the purpose of filtration. Precision filtration is a filtration method that falls between sand filtration (coarse filtration) and ultrafiltration. Its filtration pore size is generally in the range of 0.01-120 μ m, although some believe it is between 0.1-100 μ m or 0.5-120 μ m.

Precision Filters: Applications, Installation, and Maintenance

Application Area

1. Pharmaceutical and Food Industries: Guardians of Product Purity

Precision filters find extensive use across diverse industries. In the pharmaceutical and food industries, they play a crucial role in ensuring product purity and quality while complying with GMP ,and other certification standards. Similarly, in the electronics industry, manufacturers utilize precision filters to ensure liquid filtration and impurity removal during the production process, thereby guaranteeing product quality.

Moreover, in the chemical industry, users can apply precision filter cartridges for solid – liquid separation and other applications to meet the industry’s filtration needs. Additionally, in the environmental protection and water treatment field, precision filter cartridges, as a pretreatment step for reverse osmosis systems, ultrafiltration systems, or other advanced water treatment technologies, can safeguard downstream high – value membrane components from damage.

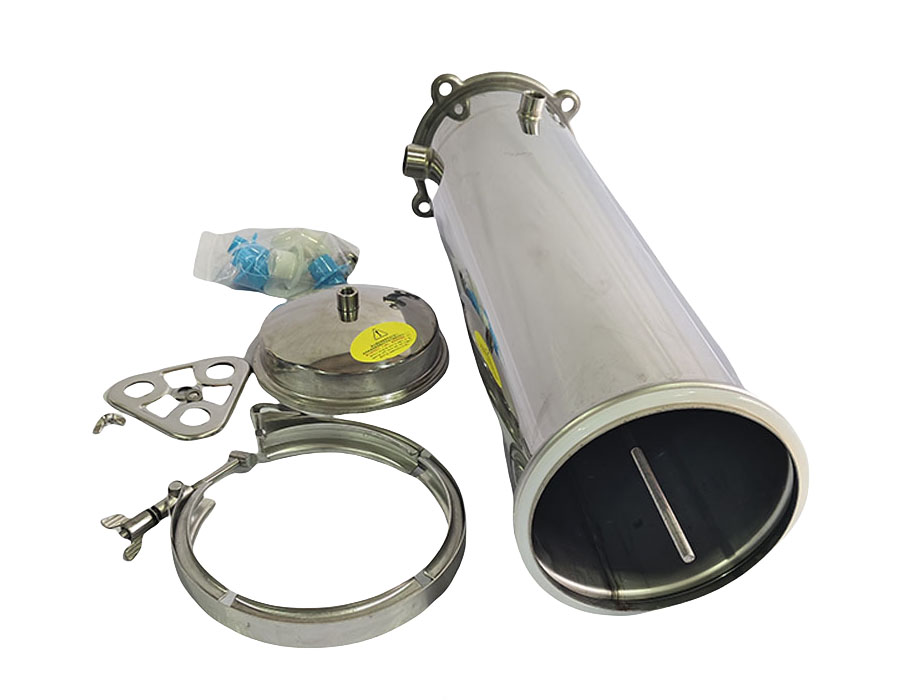

Installation Steps

Once you understand the applications, it’s time to focus on the installation process. First, clean the filter housing thoroughly. Subsequently, connect the inlet and outlet of the casing to the filtration system pipeline. At this point, pay attention to the connection direction and ensure the filter element has an outer – inlet and inner – outlet state.

Next, wet the O- ring and filter seat socket with a suitable wetting agent (such as water). After that, hold the end of the filter cartridge near the O – ring and vertically insert the filter cartridge socket fully into the filter cartridge seat socket. Then, secure the filter element with the pressure plate and install the metal casing.

Following that, open the vent valve at the top of the casing. Slightly open the inlet valve to let the liquid enter the casing until the liquid overflows from the vent valve. Finally, close the vent valve and slowly adjust and fully open the inlet valve.

securly filter Security Filter Maintenance Precautions

Importance of Post – installation Maintenance

After successful installation, proper maintenance is essential. The smooth and efficient operation of the precision filter system depends largely on regular upkeep, which helps prevent potential issues and ensures the longevity of the equipment.

Regular Inspection for Clogging

Regularly check if the filter element is blocked. This routine inspection is a key preventive measure. By detecting blockages early, you can avoid a significant drop in filtration efficiency and potential damage to the overall system.

Timely Replacement of Severely Clogged Filter Elements

In case a filter element is severely clogged, replace it in a timely manner. A clogged filter not only reduces the effectiveness of the filtration process but can also cause pressure imbalances and other operational problems if left unattended.

Ensuring Compatibility During Filter Element Replacement

When replacing the filter element, make sure the model and specifications of the new filter element match those of the old one. Compatibility is crucial as it guarantees that the new filter can function seamlessly within the existing system, maintaining the system’s performance and efficiency. This way, you can ensure the continuous and efficient operation of the precision filter system.
